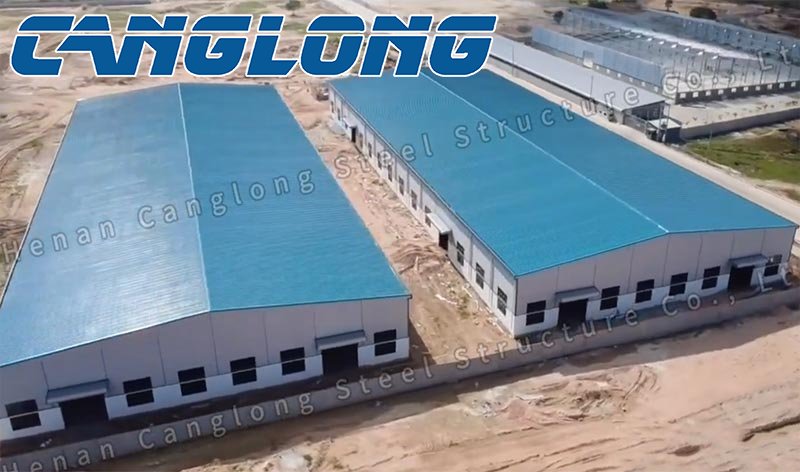

Two industrial plants constructed with Q355B H-beam steel

Recently, two large-scale modern industrial plant projects, for which Canglong Group provided a complete one-stop solution, have been successfully completed. Standing side-by-side, the two plants, with their grand scale, scientific internal space planning, and efficient delivery, have become another landmark project for Canglong Group in the field of industrial infrastructure.

I. Project Overview

This project aims to create a high-density, multi-production-line composite industrial space for the client.

Dual Plant Layout: The project includes two standardized, independently operating modern single-story plant buildings.

Four-Span Internal Design: To ensure efficient space utilization within the extremely large building span, the technical team adopted an advanced four-span portal frame structure. This design not only significantly reduces the interference of large internal columns on production lines but also allows the client to seamlessly partition different workshops, logistics channels, and storage areas, greatly improving the efficiency of multiple production lines operating in parallel.

II. Core Structure

To address the stringent requirements of large factory buildings for load-bearing capacity and wind resistance, Canglong Group adhered to high industrial standards in material selection and processing:

Portal Frame System: The main frame structure beams and columns uniformly utilize Q355B low-alloy high-strength H-beams. The excellent tensile strength and weldability of Q355B steel ensure the structural rigidity of the entire building under long-term full-load operation.

Fully Bolted Secure Connection: All H-beam components undergo high-precision punching and cutting in Canglong's digital factory, enabling rapid, weld-free assembly on-site using high-strength bolts, balancing construction speed with seismic performance at joints.

III. Enclosure and Solar Energy System

In terms of the enclosure system and architectural details, the project achieved a perfect balance between practicality and cost-effectiveness:

EPS Sandwich Panel Enclosure: The factory's wall panels and roof panels all utilize high-quality EPS (polystyrene) sandwich panels. As a cost-effective enclosure solution, EPS panels are not only lightweight, effectively reducing the overall load on the steel structure, but also possess excellent thermal insulation and waterproofing properties, significantly lowering the initial construction costs of the project.

Multi-window transparent design: Numerous industrial windows were incorporated into the factory's perimeter and walls. This multi-window design greatly enhances natural lighting and air circulation within the workshop, providing workers with a bright and comfortable working environment and significantly reducing daytime lighting energy consumption.

IV. Canglong's One-Stop Solution

The successful completion of this project is primarily attributed to Canglong Group's robust supply chain system. We not only supplied the steel frame but also provided a 100% complete building package:

Substructure System: Precisely matched purlins, tie rods, and other components were delivered simultaneously, constructing a perfect substructure grid and laying a solid foundation for the flatness of the exterior walls and roof.

System Functional Components: All industrial doors, high-standard windows, and the entire drainage kit, including gutters and downpipes, required for the factory were standardized and matched in the factory, allowing for immediate installation on-site. Conclusion

The successful completion of the two four-span industrial plants demonstrates Canglong Group's customized solution capabilities in the field of large-scale multi-span industrial real estate. From structural calculations and standardized factory manufacturing to the final packaged delivery of all components, the project exemplifies this commitment.

Do you also need to build a large factory with a multi-span design? Contact Canglong Group and let us customize a multi-span structural solution best suited to your production flow.
