PRODUCT PARAMETER
Place of Origin: Henan, China (Mainland)
Standard: GB Standard
Certificates: CE, ISO9001
Brand Name: Canglong Group
Surface Treatment: Painted & Hot dip galvanized
Metal sheet: steel sheet / Aluminum plate
Metal sheet thickness: 0.4~0.8mm
Core Material: polyurethane
Core Material Thickness: 50mm 75mm 80mm 100mm 150mm 200mm
Width: 1000mm / 1m

INQUIRE NOW

BUY NOW

  X

 Polyurethane sandwich panel (50 / 75 / 80 / 100 / 150 / 200mm)

Polyurethane sandwich panel is a bimetallic, single-metal, non-metal composite sheet made of polyurethane rigid foam as insulation layer. It is usually used in industrial plants, logistics storage, wall and roof enclosure systems for integrated houses. The bonding strength of the polyurethane sandwich panel is not less than 0.09MPa, the combustion performance of the sandwich panel reaches B1 grade, and the flexural capacity of the sandwich panel is Lo/200 (Lo is the distance between the supports), the bending load of the sandwich panel The force is not less than 0.5Kn/m2.

  • Polyurethane sandwich panel
  • Polyurethane sandwich panel
  • Polyurethane sandwich panel

Polyurethane sandwich panel

 Polyurethane sandwich panels have the following characteristics:

(1) Low thermal conductivity. The polyurethane sandwich panel composite panel has the small thermal conductivity and good thermal insulation performance, and is the best thermal insulation material at present.

(2) The plate shape is beautiful, the installation is convenient, the concealed nails are connected, the surface has no exposed screws, and the building wall is beautiful and smooth.

(3) Polyurethane sandwich panel has good fire resistance.

(4) Polyurethane sandwich panel is non-toxic and tasteless.

(5) Wide temperature range.

(6) Waterproof, moisture proof.

 Polyurethane sandwich panel color selection:

The common colors of polyurethane sandwich panels are as follows. There are other colors that we can tailor for you.

Polyurethane sandwich panel color

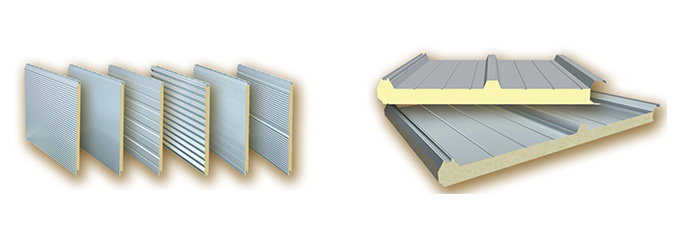

 Polyurethane sandwich panel type, sheet thickness and effective width

  • Polyurethane sandwich panel

    The commonly used thickness of polyurethane sandwich panels 50mm / 75mm / 100mm / 150mm / 200mm

  • Polyurethane sandwich panel

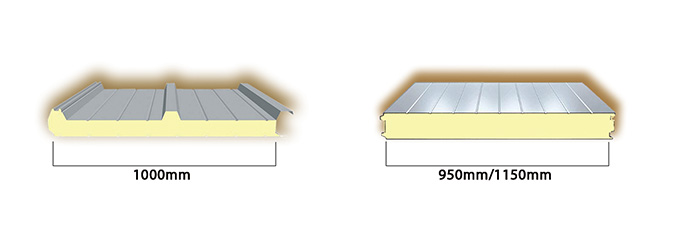

    The effective width of the polyurethane sandwich panel: Roof: 1000mm, Wall: 950mm / 1150mm.

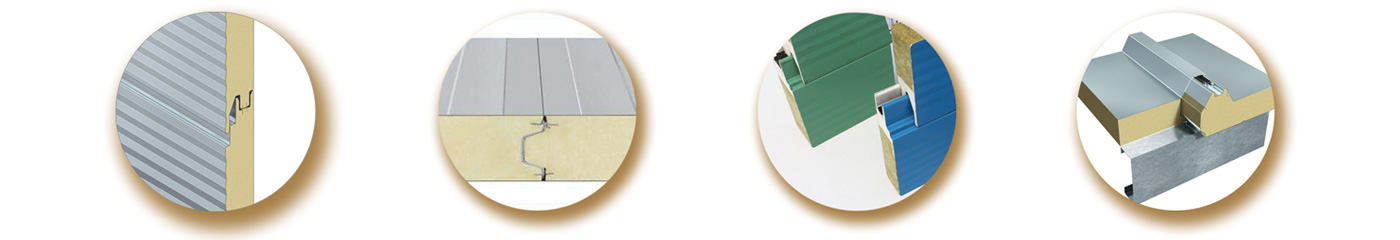

 Polyurethane sandwich panels are connected in the following ways:

Polyurethane sandwich panels

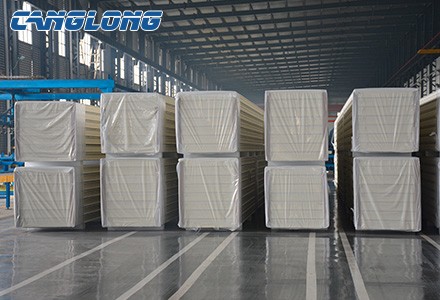

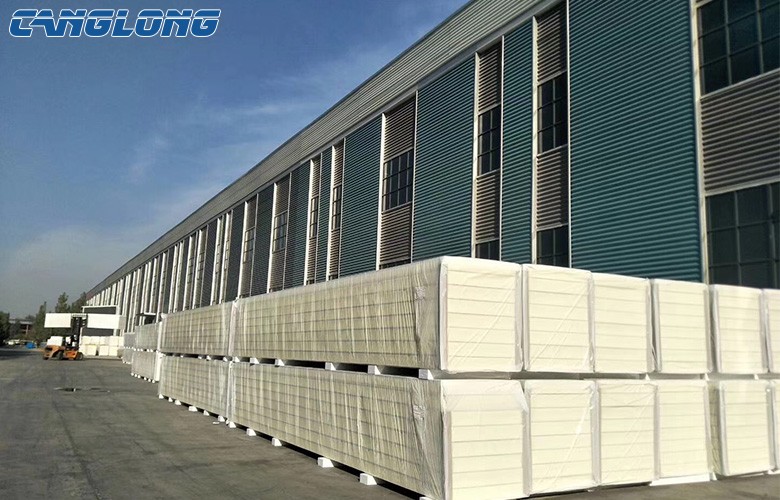

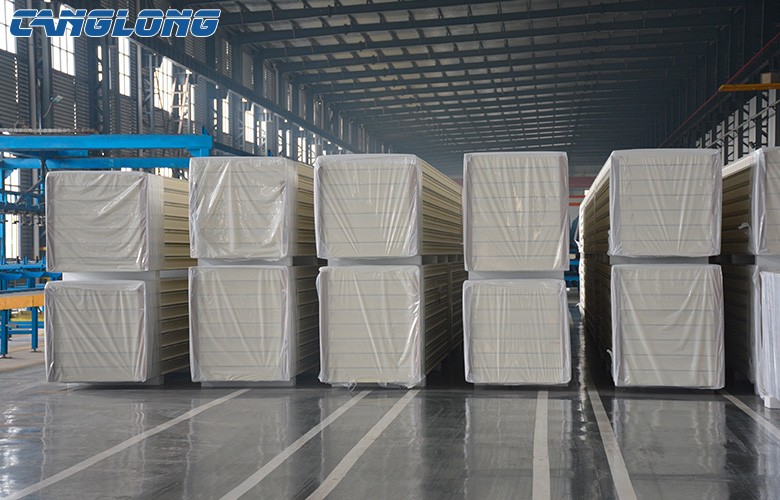

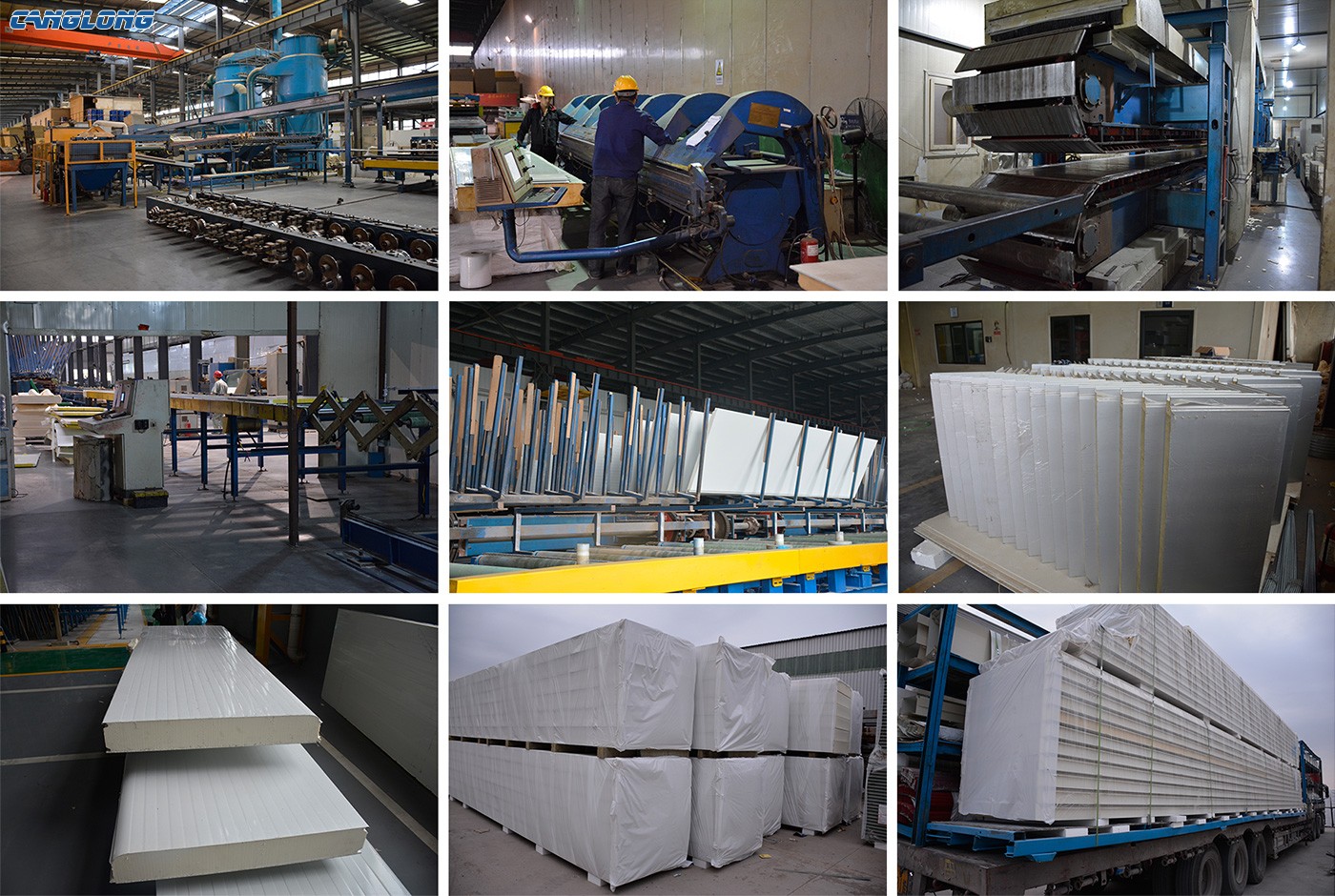

 Polyurethane sandwich panel production and loading:

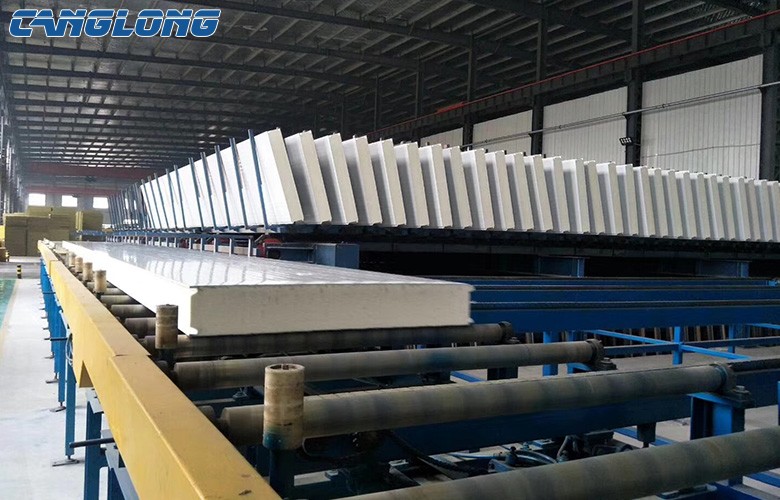

Polyurethane sandwich panel production
