| PRODUCT PARAMETER | |
|---|---|
| Place of Origin: | Henan, China (Mainland) |
| Standard: | GB Standard |
| Certificates: | CE, ISO9001 |
| Grade: | Q235/Q355 |
| Brand Name: | Canglong Group |
| Type: | Light Steel Structure |
| Surface Treatment: | Painted & Hot dip galvanized |
| Columns and Beams: | H-section Steel |
| Purlin: | C.Z Shape Steel Channel |
| Roof and Wall Panel: | Sandwich Panel, Color Steel Plate |
| Door: | Flip Garage Door / Garage Curtain Door |
The steel structure three-dimensional parking garage belongs to the storage facility, which is specially parked for various types of vehicles and is scientifically registered. It consists of six parts: steel frame, rotary table (with embedded type), conveyor or elevator, monitoring console and auxiliary equipment (fire, power distribution, anti-theft mechanism). The three-dimensional parking garage fully utilizes the ground and space, effectively utilizes the land area available for parking, and increases the number of parking spaces in the area. The structure is simple, the process is simple, the installation is simple, the use is simple, the invention is novel, economical and practical. It is safe and reliable, runs smoothly, has low noise, low cost, low energy consumption and wide application range.
The three-dimensional parking garage is divided into independent types and built-in two in the form of building. The independent parking building is suitable for underground plazas and existing building supplementary parking facilities. The built-in stereo garage is suitable for simultaneous planning and construction with new buildings. Parking equipment is attached to the building and has no impact on regional environmental planning and architectural outlook.
According to structural performance: mechanical, self-propelled and semi-mechanical three.
According to the operating mechanism: lifting and traversing, vertical circulation, roadway stacking, vertical lifting, simple lifting and so on. The lifting and traversing type is a mechanical parking device that uses the lifting or (and) lateral translation of the loading plate to park the car. It is suitable for residential quarters, building basements, and overpasses. The vertical circulation type is a mechanical parking device for parking a car with a vertically circulating moving plate system. The roadway stacker is a mechanical parking device that uses a roadway stacker or a special crane to move the car horizontally and simultaneously vertically to a predetermined parking position or vice versa. Suitable for large-scale public public parking buildings and underground parking garages.
According to the degree of automation: automatic parking garage, semi-automatic parking garage and automatic parking garage. The automatic three-dimensional parking garage can be divided into two-layer or multi-layer flat automatic parking garage, vertical dense automatic parking garage and special-shaped structure automatic three-dimensional parking garage (such as honeycomb, labyrinth, etc.).

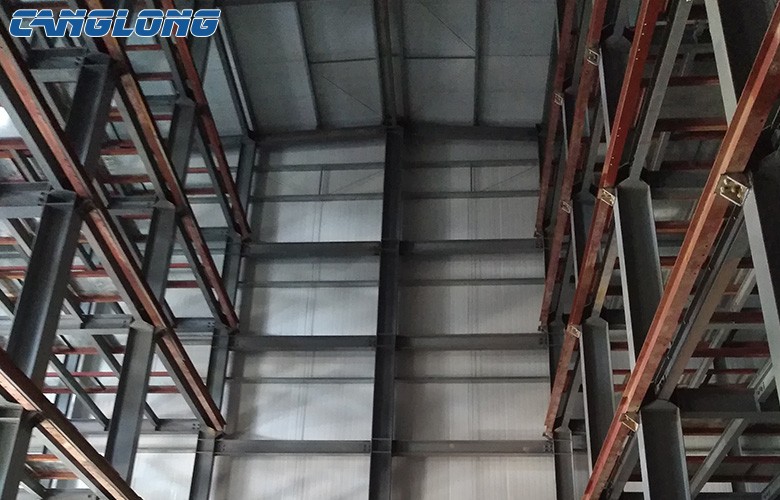

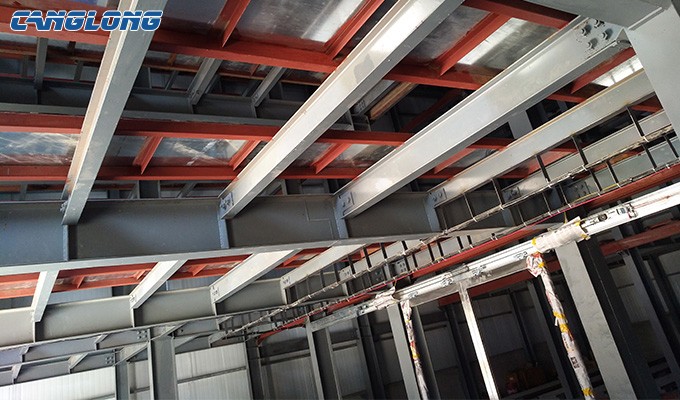

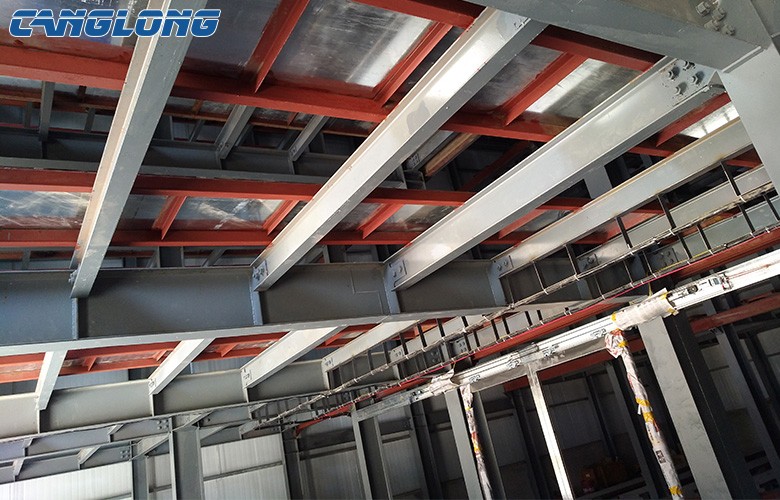

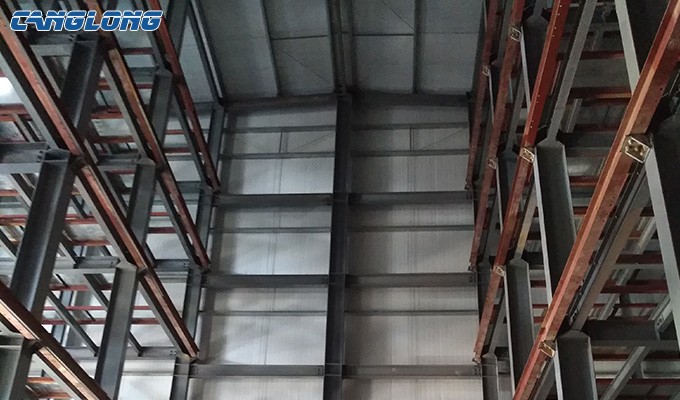

3. The steel structure of the three-dimensional parking garage is mainly welded with hot-rolled H-shaped steel, channel steel, angle steel, steel plate, etc., and then connected with high-strength bolts into a frame structure, which has good strength and rigidity. According to different structural requirements, there are single column form, cross beam form, rear cantilever form and so on. The vehicle is used to carry the access vehicle, and has two kinds of frame structure and panel structure. The frame structure of the car board is welded by steel and steel plates. Most of them are in the form of intermediate protrusions. The steel plate is laid on the top. The advantage is that the width can be designed as needed, and the introduction function is better. It is suitable for small batch production with more changes. The slab-plated steel plate is stamped or rolled into an assembly with galvanized steel. It is assembled into a carrier plate by bite and fastened with high-strength bolts. This carrier plate is light and beautiful, convenient to transport, and interchangeable. Suitable for mass production.

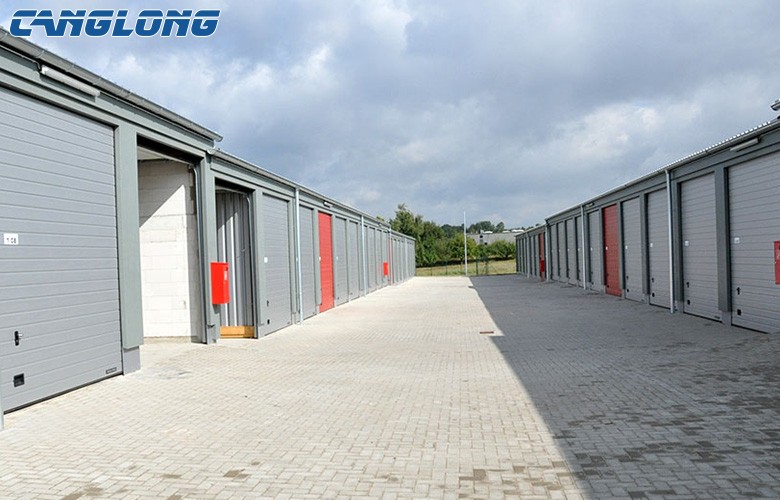

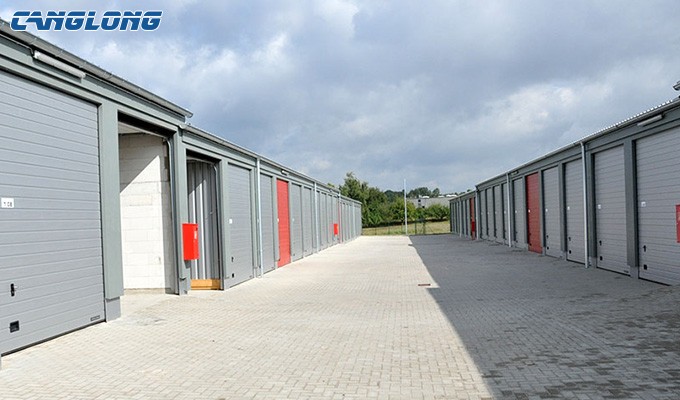

1. The metal garage is a metal structure with a roof that provides protection against rain, snow and sun protection for tools such as cars, boats and bicycles. The Snapdragon Group has designed a number of metal garages of different sizes, styles and colors to meet your different needs. In addition our steel garage buildings can also be customized to meet your specific needs.
The company has many years of experience in designing parking garages, providing quality products at the best possible price, creating a pleasant buying experience for all types of metal garage buyers. Whether you are looking for a metal garage, bicycle garage, boathouse, we can meet your specifications.
Common garage doors are mainly remote, electric and manual. Among them, remote control, induction, and electric can all be collectively referred to as automatic garage doors. The main difference between a manual garage door and an automatic garage door is that there is no motor. Automatic garage doors are now mainly classified as: flap garage doors and roller shutter garage doors.
2. Below are the information you need to provide when ordering our metal garage:
(1) Local climate and load.
(2) Metal carports need to remain open or partially closed.
(3) Roof, wall and decorative colors
3. How to order a metal garage?
(1) How long does it take for me to order a steel garage?
The time period associated with delivery and installation varies depending on your status. Delivery time for carports and metal garages is approximately 7-30 days.
(2) Can the metal garage be custom width or length?
Yes, we can tailor the length and width of the metal garage for you.
(3) Can the color of the garage roof and wallboard be customized?
You can give us the color you like, and we will tailor it for you.
(4) How to order a metal garage?
You can send your request to our email address or contact us by phone.
