H section steel

PRODUCT PARAMETER
Place of Origin:	Henan, China (Mainland)
Standard:	GB Standard
Certificates:	CE, ISO9001
Brand Name:	Canglong Group
Surface Treatment:	Painted & Hot dip galvanized
Performance:	Strong flexural capacity, simple construction, cost saving and light structure weight
Application:	1. Various civil and industrial building structures; 2. Various large-span industrial buildings and modern high-rise buildings; 3. Large bridges with large bearing capacity, good section stability and long span are required.

INQUIRE NOW

BUY NOW

H-section steel

1. Application fields of H-section steel

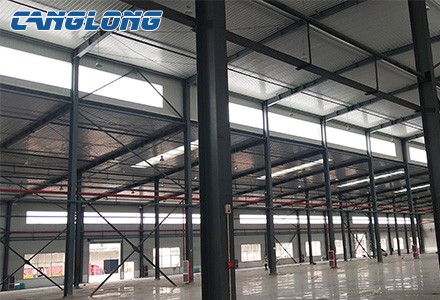

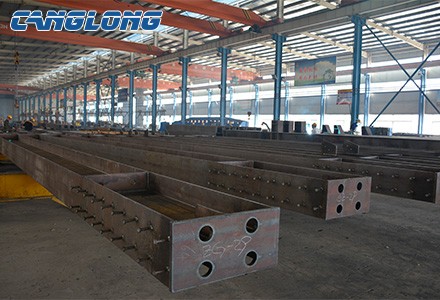

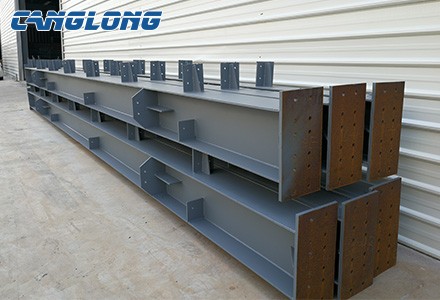

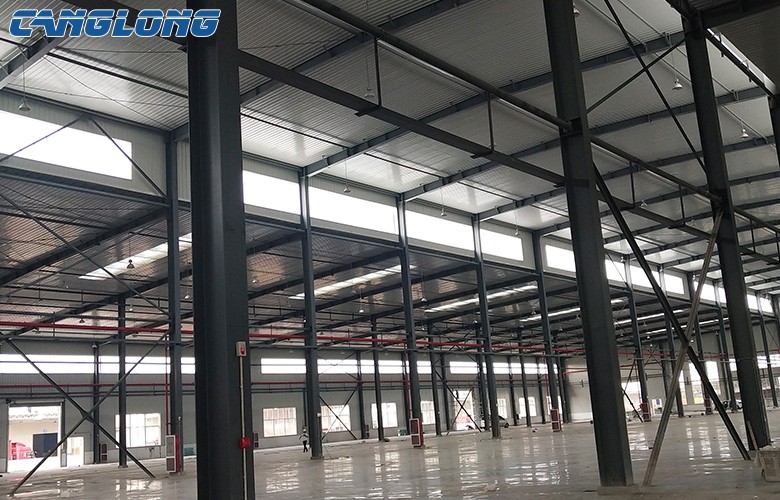

H-section steel is a kind of economic section high-efficiency profile with more optimized section area distribution and more reasonable strength-weight ratio. It is named because its section is the same as the English letter "H". Because H-beam is arranged at right angles in all parts, H-beam has the advantages of strong bending resistance, simple construction, cost saving and light structure weight in all directions. Based on the above advantages, H-shaped steel is widely used in various civil and industrial structures, various large-span industrial buildings and modern high-rise buildings, especially in areas with frequent seismic activity and under high temperature working conditions, requiring large bridges with large bearing capacity, good cross-section stability and long span, heavy equipment, highway, ship skeleton, mine support and foundation. Handling and dam engineering, various machine components.

2. Specification Category of H-section steel

Category	Model	Section Size（mm）
Category	(Width × Height)	H x B	t1	t2	r
HW	100×100	100×100	6	8	10
	125×125	125×125	6.5	9	10
	150×150	150×150	7	10	13
	175×175	175×175	7.5	11	13
	200×200	200×200	8	12	16
	200×200	200×204	12	12	16
	250×250	250×250	9	14	16
	250×250	250×255	14	14	16
	300×300	294×302	12	12	20
		300×300	10	15	20
		300×305	15	15	20
	350×350	344×348	10	16	20
	350×350	350×350	12	19	20
	400×400	388×402	15	15	24
		394×398	11	18	24
		400x400	13	21	24
		400×408	21	21	24
		414×405	18	28	24
		428×407	20	35	24
		458×417	30	50	24
		498×432	45	70	24
HM	150×100	148×100	6	9	13
	200×150	194×150	6	9	16
	250×175	244×175	7	11	16
	300×200	294×200	8	12	20
	350×250	340×250	9	14	20
	400×300	390×300	10	16	24
	450×300	440×300	11	18	24
	500×300	482×300	11	15	28
	500×300	488×300	11	18	28
	600×300	582×300	12	17	28
		588×300	12	20	28
		594×300	14	23	28
HN	100×50	100×50	5	7	10
	125×60	125×60	6	8	10
	150×75	150×75	5	7	10
	175×90	175×90	5	8	10
	200×100	198×99	4.5	7	13
	200×100	200×100	5.5	8	13
	250×125	248×124	5	8	13
	250×125	250×125	6	9	13
	300×150	298×149	5.5	8	16
	300×150	300×150	6.5	9	16
	350×175	346×174	6	9	16
	350×175	350×175	7	11	16
	400×150	400×150	8	13	16
	400×200	396×199	7	11	16
	400×200	400×200	8	13	16
	450×150	450×150	9	14	20
	450×200	446×199	8	12	20
	450×200	450×200	9	14	20
	500×150	500×150	10	16	20
	500×200	496×199	9	14	20
		500×200	10	16	20
		506×201	11	19	20
	600×200	596×199	10	15	24
		600×200	11	17	24
		606×201	12	20	24
	700×300	692×300	13	20	28
	700×300	700×300	13	24	28
	800×300	792×300	14	22	28
	800×300	800×300	14	26	28
	900×300	890×299	15	23	28
		900×300	16	28	28
		912×302	18	34	28

3. Processing flow of H-section steel

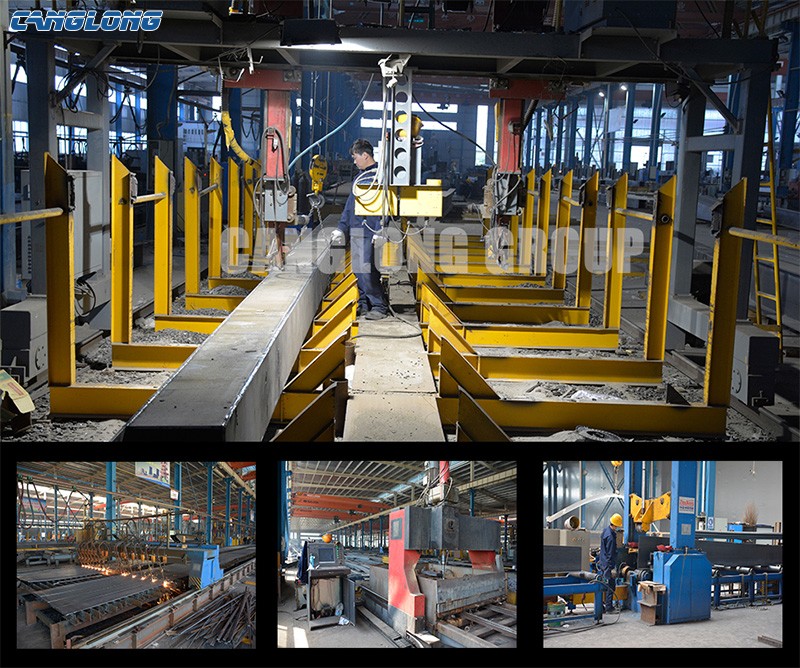

H-section steel can be produced by welding or rolling. Welding H-section steel is to cut strip with suitable thickness into suitable width and weld flange and web together in continuous welding unit. The processing flow of welded H-section steel is as follows:

Testing of Raw Materials①——Computer Typesetting, Blanking②——Assembly③——Welding④——Weld Seam Inspection and Root Cleaning⑤——Denaturation Control⑥——Test Assembling⑦——Dimensional Inspection Verification⑧——Sand Blasting and Rust Removal⑨——Painting and Numbering Packaging⑩

Universal rolling mill is often used to roll H-beam in modern rolling production. The web of H-beam is rolled between the upper and lower horizontal rolls, while the flange is rolled between the side of the horizontal roll and the vertical roll at the same time. The processing flow of hot rolled H-beam is as follows:

Special-shaped Continuous Casting Embryo①——Walking Beam Heating Furnace②——High Pressure Water Descaling③——Two-roll Reversible Roughing Mill④——Cantilever Straightener⑤——Walking Beam Cold Bed⑥——Hot Saw⑦——Universal Mill Set⑧——Marshalling Stand⑨——Cold Saw⑩——Stacking and Packing⑪
